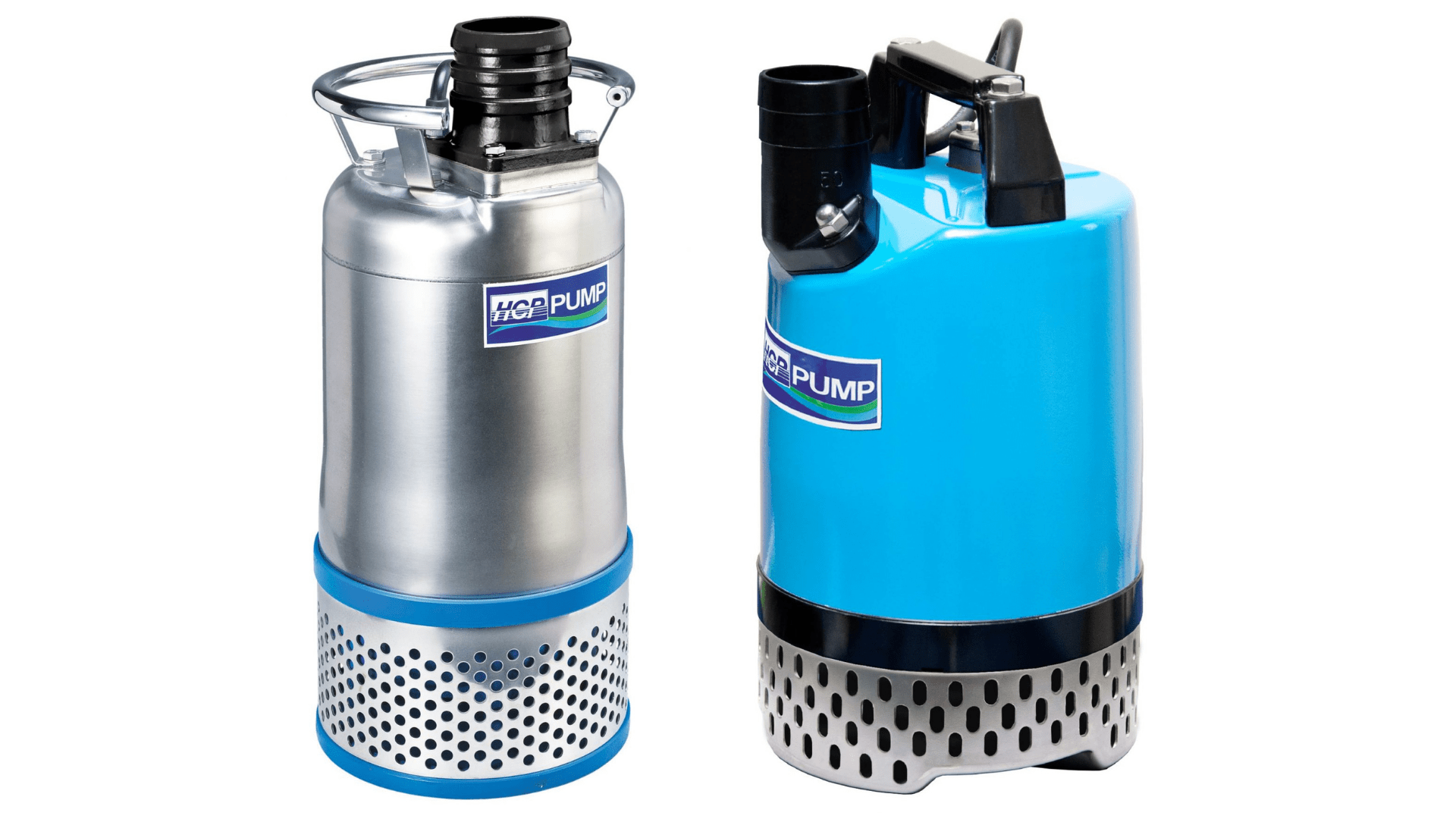

Submersible Centrifugal Pumps
HD/HDG/BD/GD Series
Drainage pump for civil engineering applications, with double casing, chrome alloy impeller and wear plate and rings with a Rockwell hardness of 55-60.
It is easy to move, for use by contractors, installers and service industries. The AG series incorporates a sludge agitator.
-
Flow Range
Up to 300 m3/h
-
Discharge Pressure
Up to 70 metres
-
Electric Motor
3000 rpm
-
Maximum Temperature
40°C
-
Solid Passage
Up to 20 mm

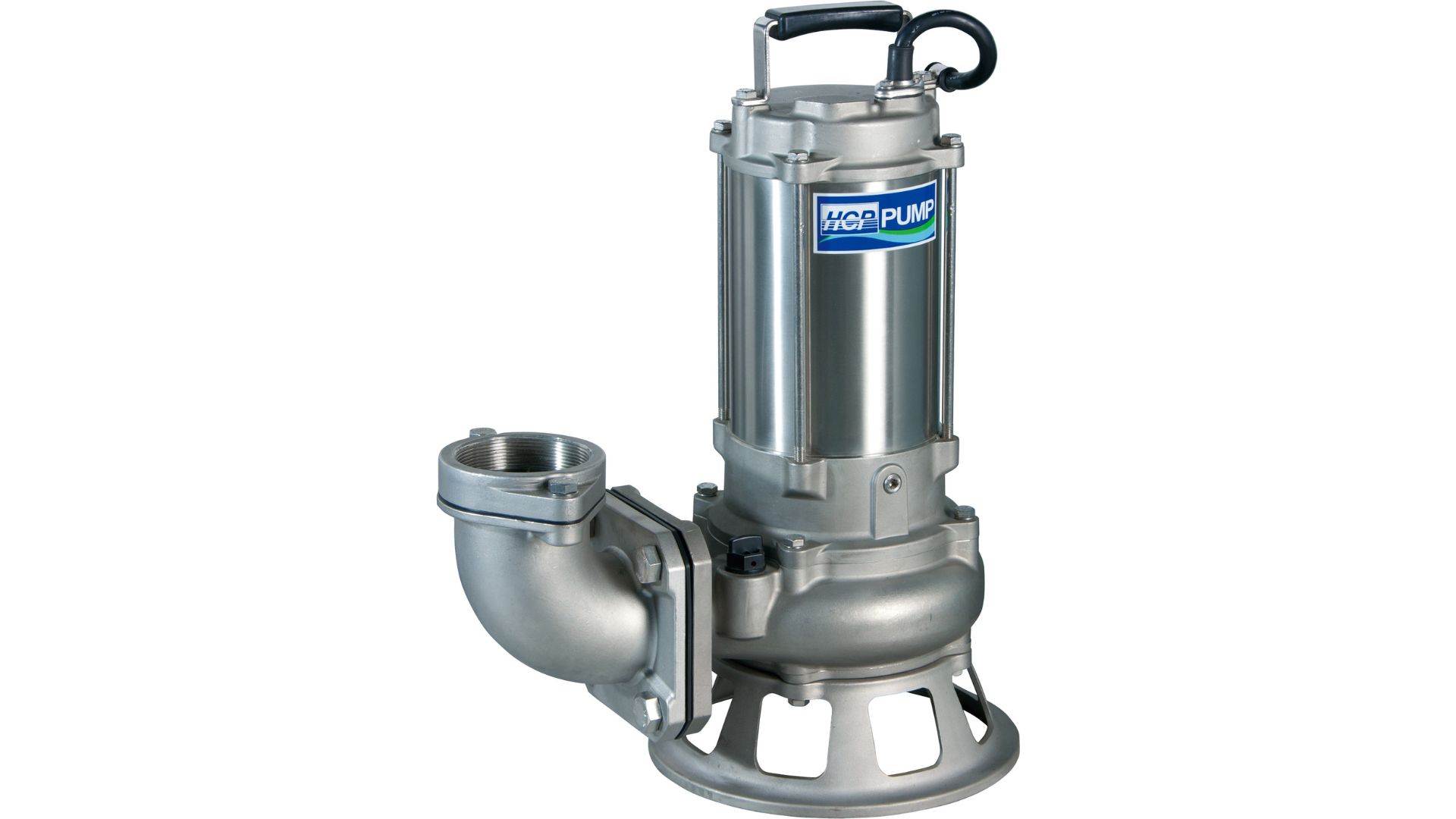

SF/SP/SA INOX-316 SERIES
Industrial series volute pumps (HV) for drainage, made entirely of AISI-316 stainless steel, for industrial use, water treatment, etc.
This series is suitable for applications with seawater, corrosive and light acids. Equipped with double mechanical seal, Viton gaskets and self-cutting protector.
-
Flow Range
Up to 140 m3/h
-
Discharge Pressure
Up to 54 metres
-
Electric Motor
3000 rpm
-
Maximum Temperature
40°C
-
Solid Passage
Up to 50 mm

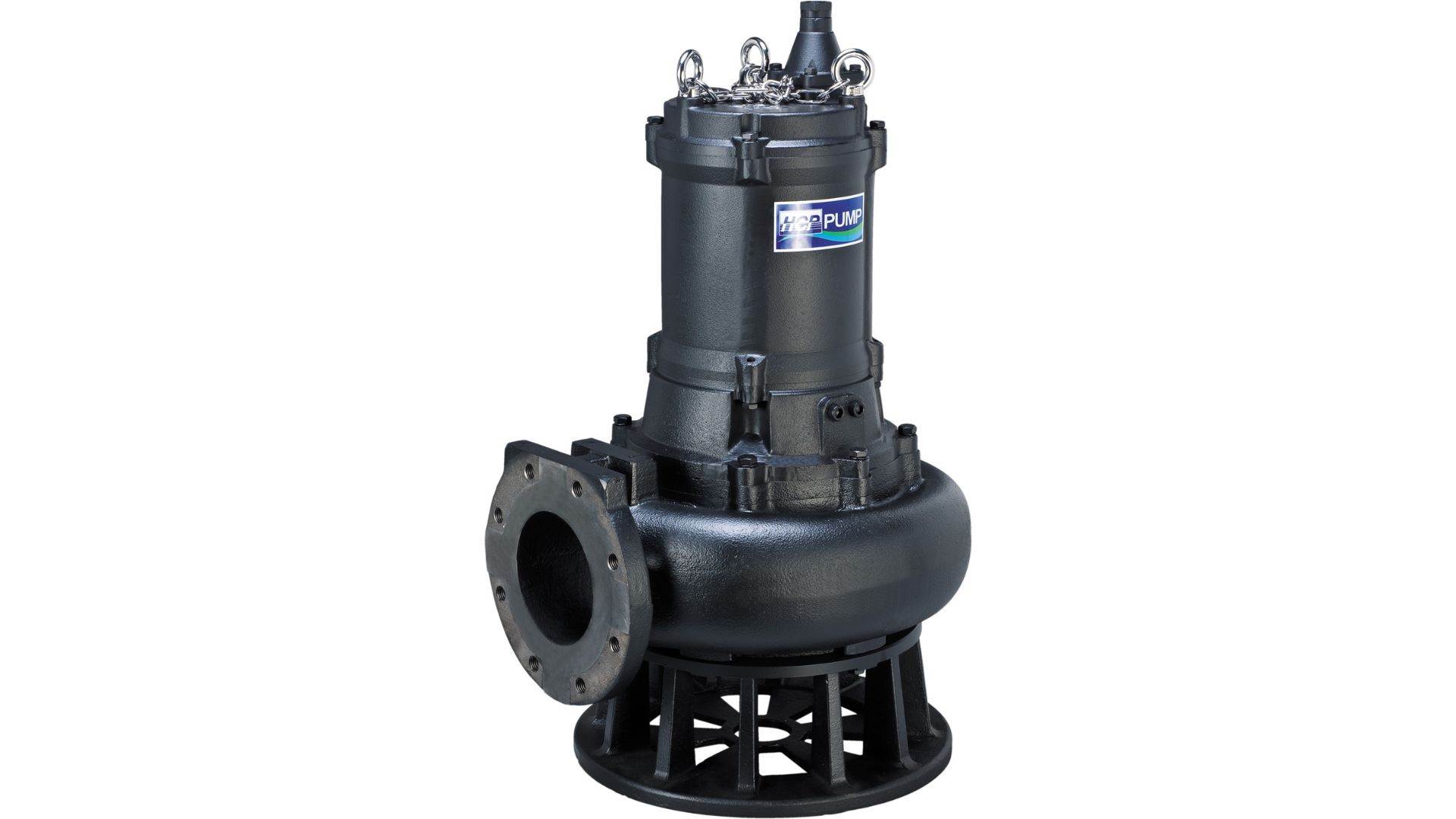

AF Series
Volute centrifugal pumps for wastewater drainage for water treatment and industrial applications and sewage pumping. Double mechanical seal, with self-cutting protector and multiple impellers depending on the type of solids.
The complete range of pumps offers high and low pressure and flow conditions.
-
Flow Range
Up to 1600 m³/h
-
Discharge Pressure
Up to 52 metres
-
Electric Motor
1500/30000 rpm
-
Maximum Temperature
40°C
-
Solid Passage
Up to 76 mm

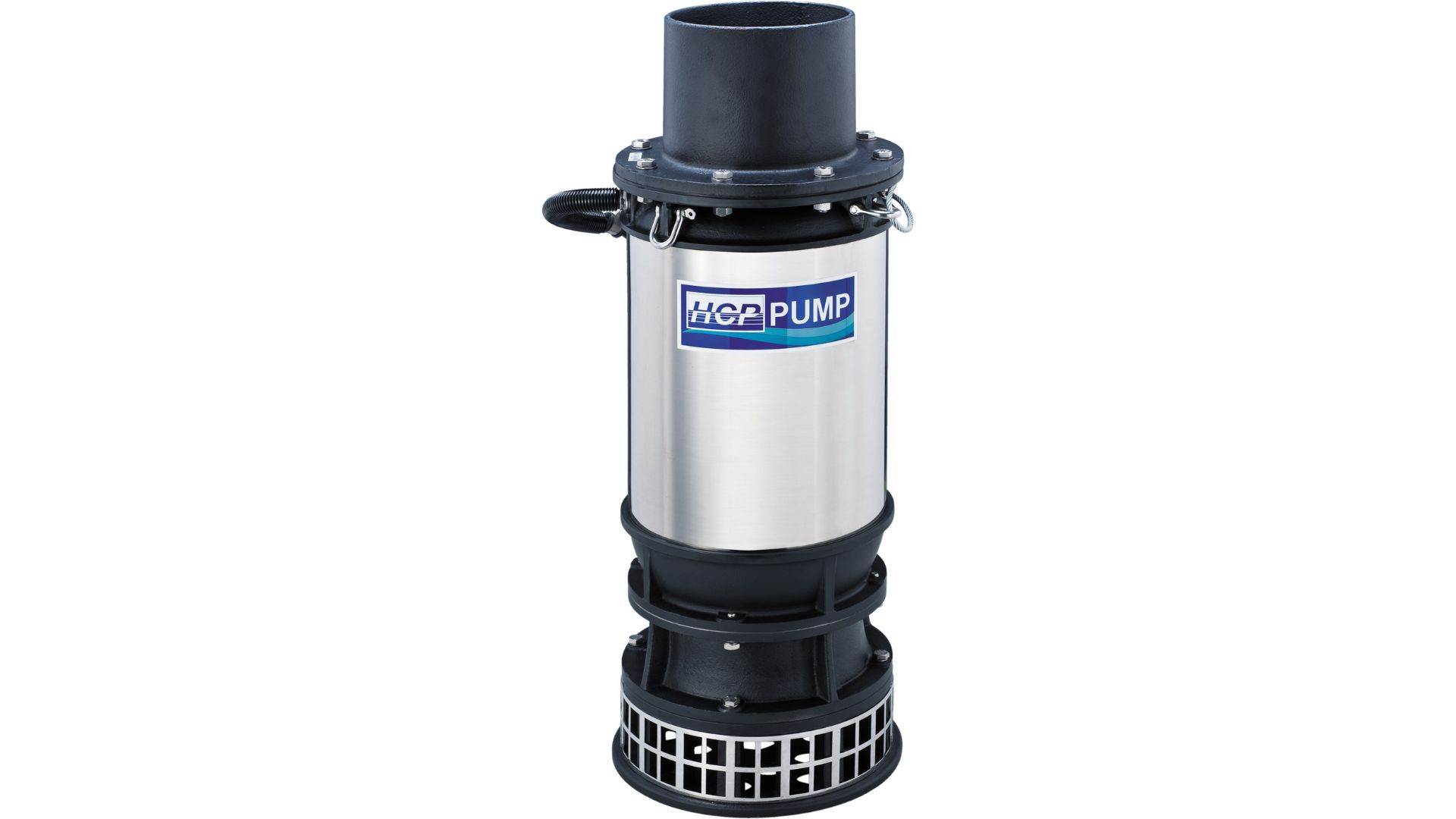

L /LA Axial Series
Industrial drainage pumps for water supply, large-volume dewatering and transfer, flood control, etc. Motor connected directly to the impeller for better performance and greater efficiency.
Incorporates thermal and mechanical seal protection and sacrificial anodes to minimise corrosion.
-
Flow Range
Up to 4200 m3/h
-
Discharge Pressure
Up to 7 metres
-
Electric Motor
600/750 rpm
-
Maximum Temperature
40°C
Download our Submersible Centrifugal Pumps catalogue here
