Agitation Systems

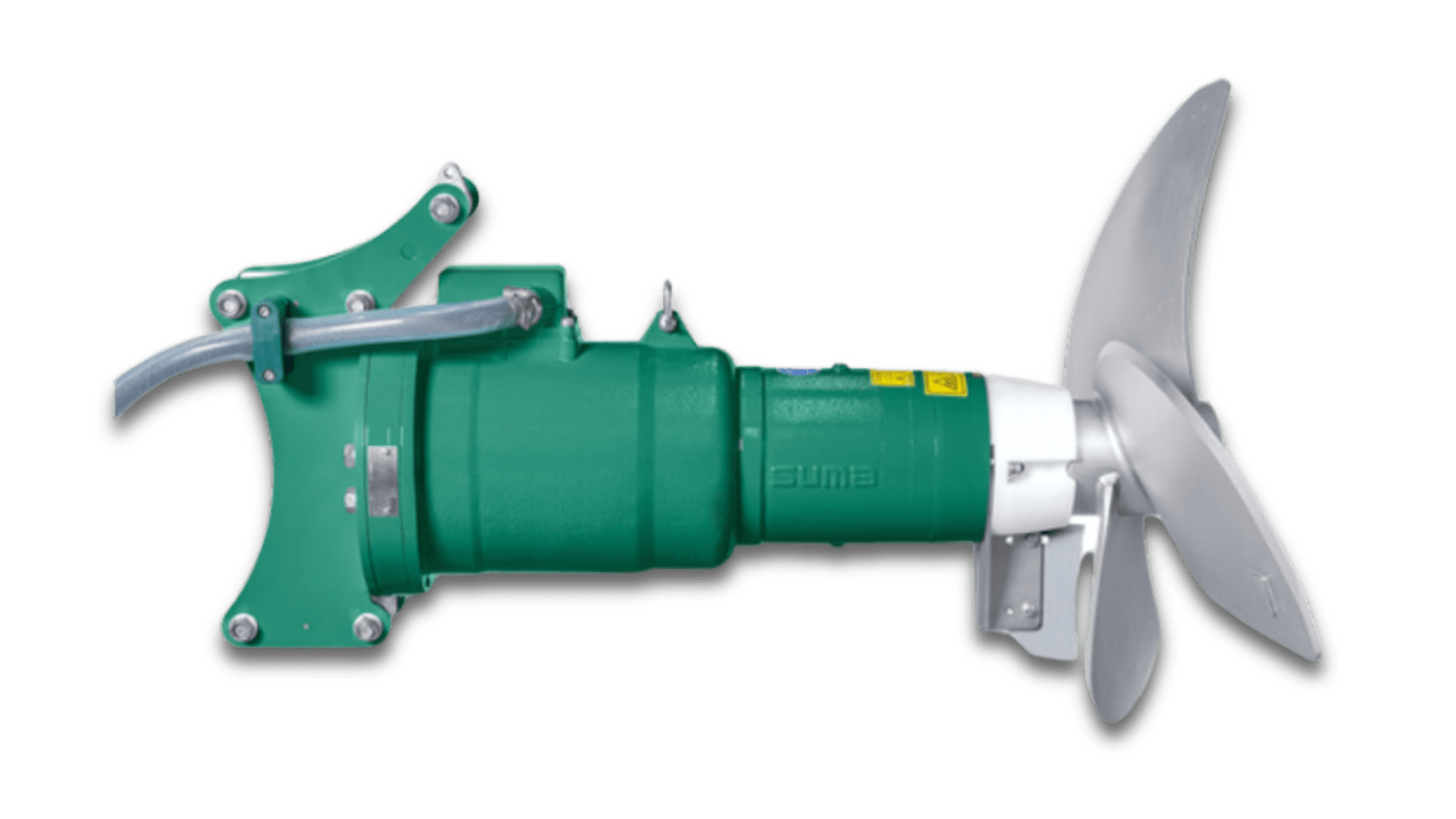

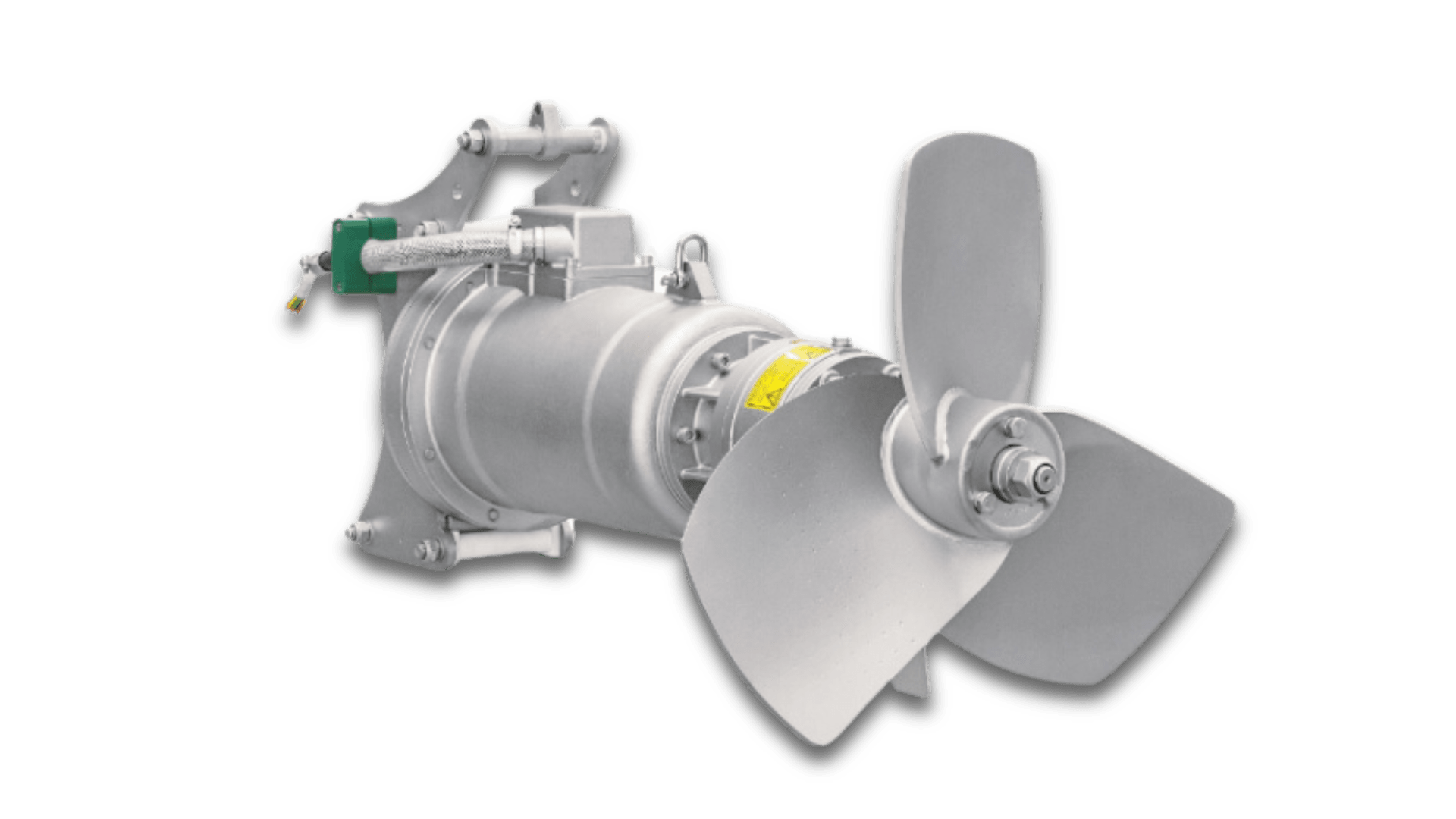

Submersible agitators
- Fluids with up to 14% dry matter
- Media with temperatures up to 55ºC
- IP-68 motor, up to 10 m submersion
- Power ratings between 2.2 and 25 kW
- Planetary gearbox 150/275/390 RPM
- 3 independent oil chambers: Mechanical seal / gearbox / electric motor
- Balanced triple vane propeller
- Double row of bearings behind the propeller for absorption of radial and axial loads
- Cutting vane and POM guard to prevent fibre entanglement
- POM sliding rollers for mast mounting
- ATEX Zone 2 certification

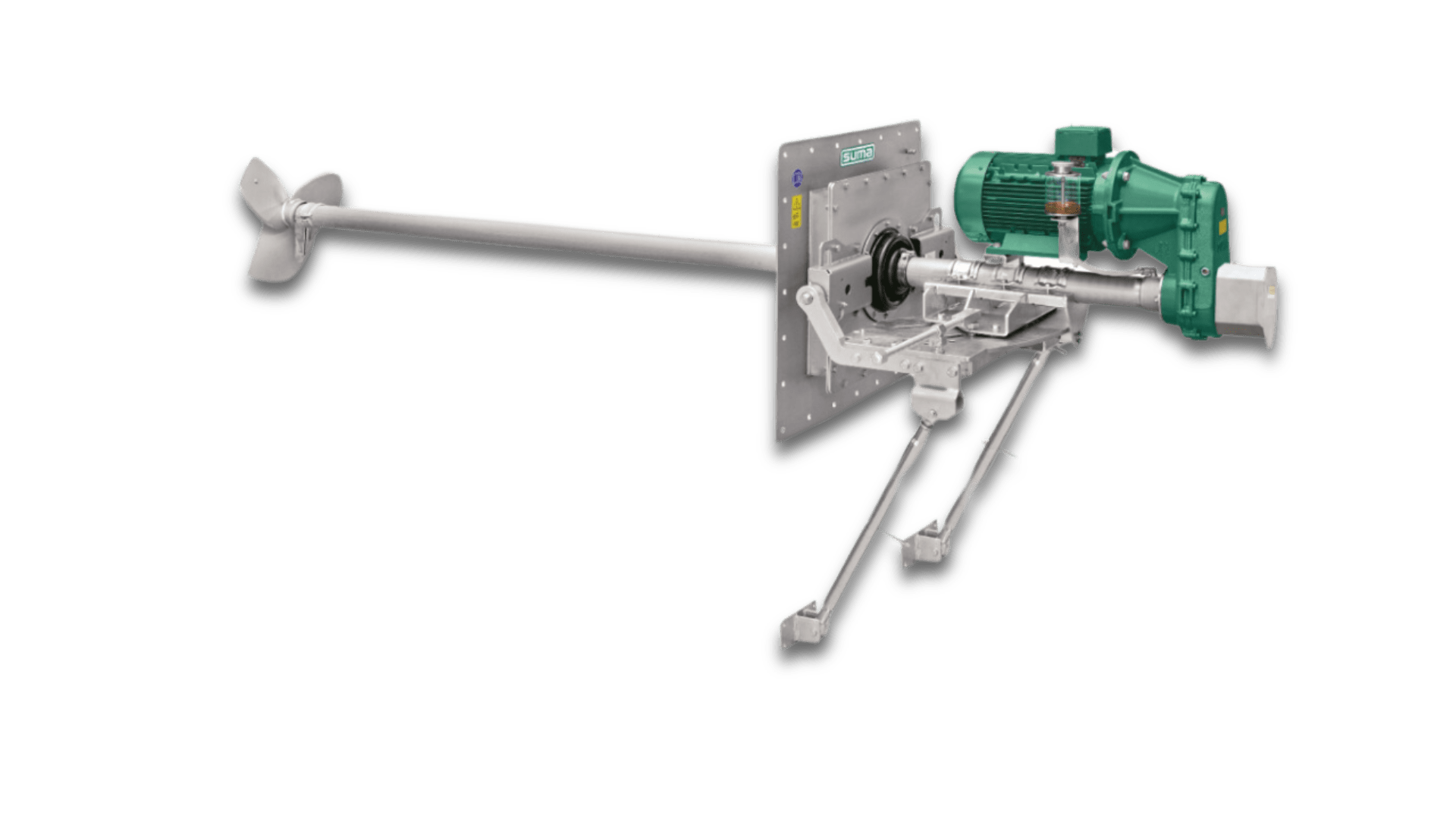

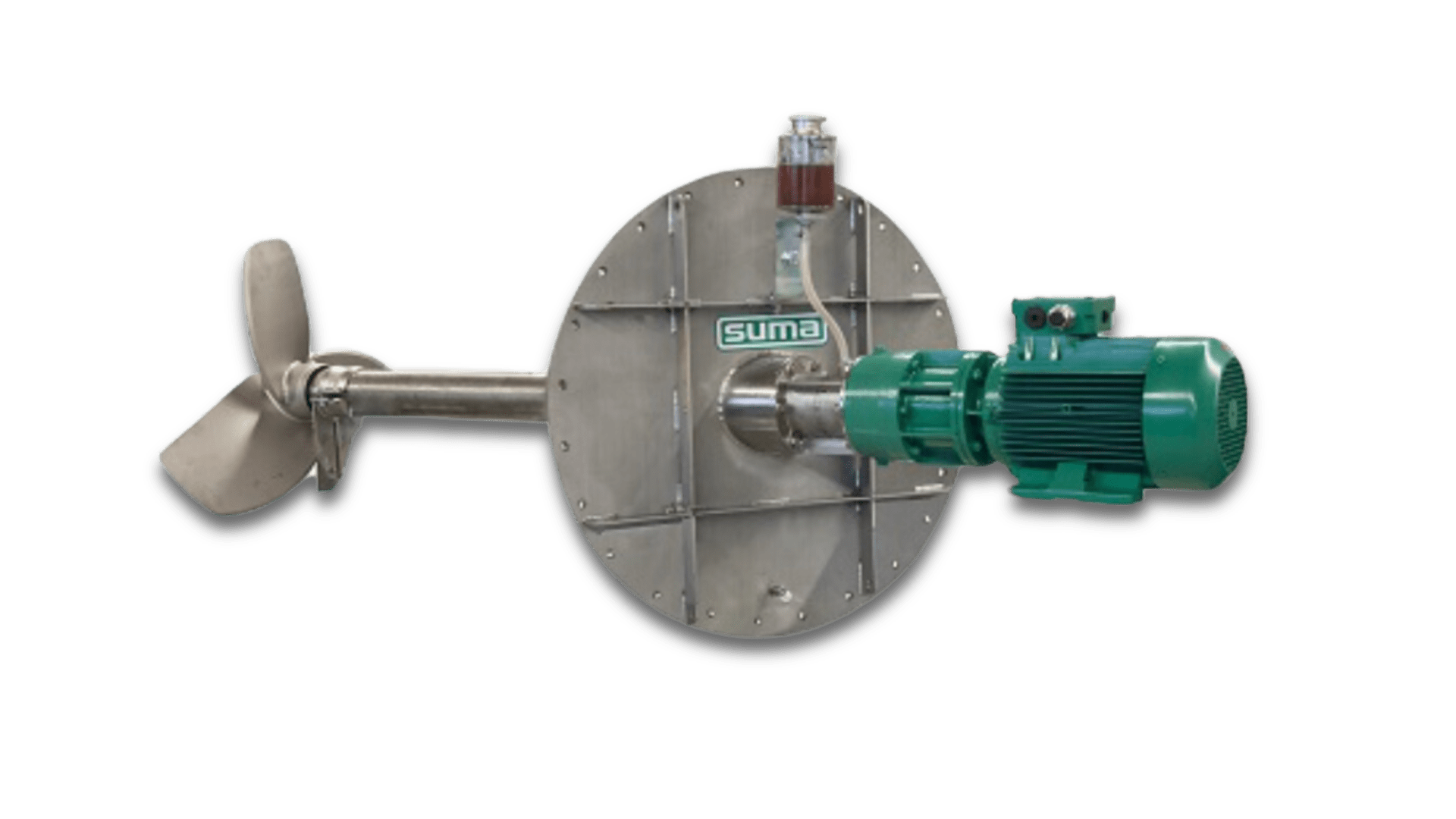

Side Agitators
- Fluids with up to 14% dry matter
- Media with temperatures up to 70ºC
- Installation depth up to 8 m below the fill level.
- Possibility of vertical and horizontal position adjustment +-25º
- Power ratings between 4 – 22 kW
- Planetary gearbox 150/275/390 RPM
- Balanced triple vane propeller
- Double row of bearings behind the propeller for absorption of radial and axial loads
- Cutting vane and POM guard to prevent fibre entanglement
- ATEX Zone 1 certification

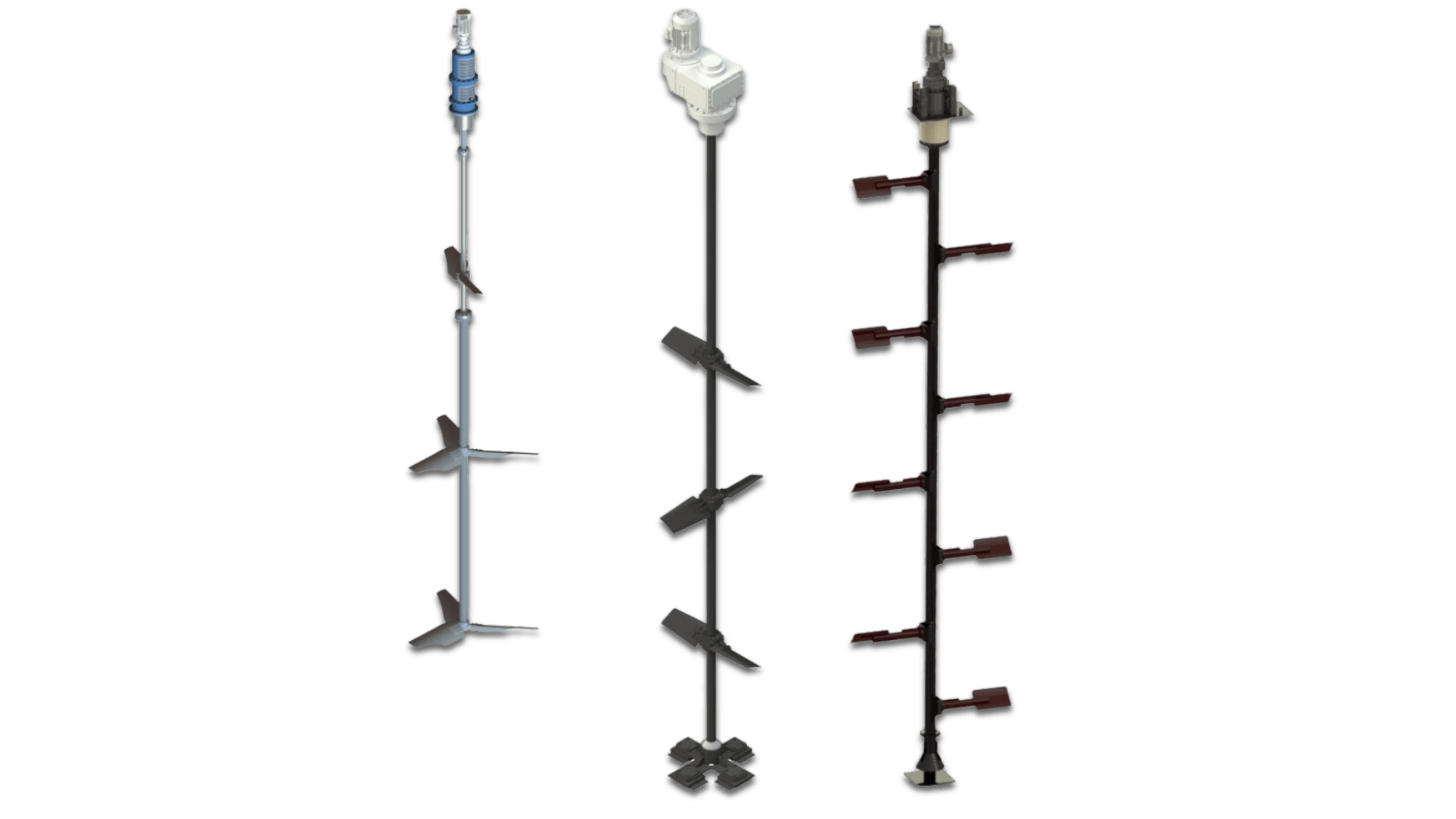

Vertical Agitators
- Fluids with up to 16% dry matter
- Working temperature up to 55ºC
- Power ratings between 7.5 – 55 kW
- Low rotation speed < 20 RPM, gentle treatment of the bacterial population for optimal gas yield.
- Axial suction from the centre of the vessel and radial expulsion on the vessel wall for highly efficient mixing
- High efficiency even with highly viscous media
- Convenient maintenance of the main mechanical components from outside the tank.
- High performance with substrates that tend to float.
- ATEX Zone 1 certification

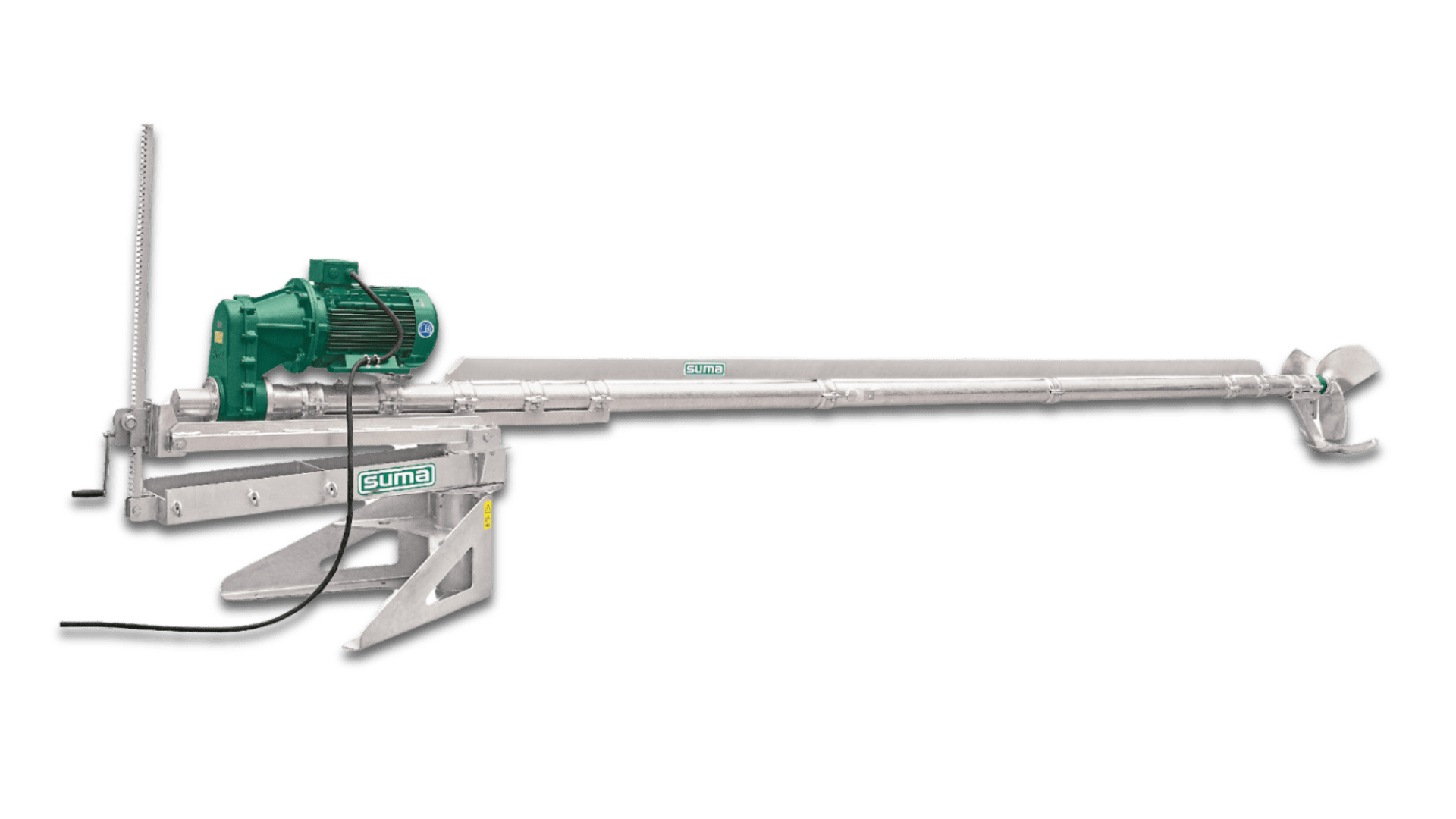

Oblivious agitators
- Fluids with up to 124% dry matter
- Media with temperatures up to 55ºC
- Designs with 360º pivoting console
- Power ratings between 11 – 18.5 kW
- 275/390 RPM planetary gearbox
- Balanced triple vane propeller
- Double row of bearings behind the propeller for absorption of radial and axial loads

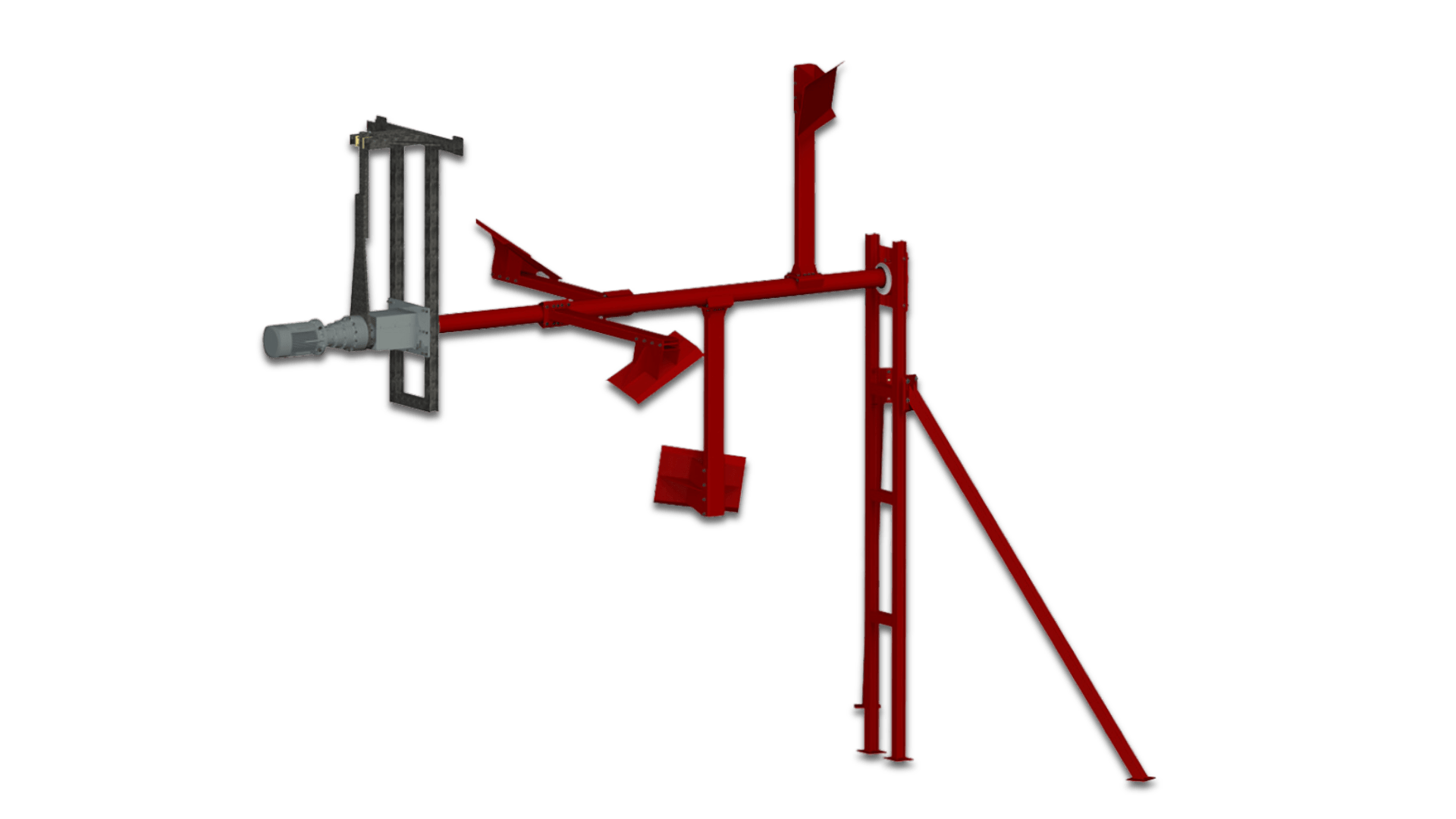

Paddle Agitators
- Fluids with up to 16% dry matter
- Working temperature up to 55ºC
- Power ratings between 15 – 22 kW
- Low rotation speed < 20 RPM, gentle treatment of the bacterial population for optimal gas yield.
- High efficiency even with highly viscous media
- Convenient maintenance of the main mechanical components from outside the tank.
- High performance with substrates that tend to float.
